EasyGlide

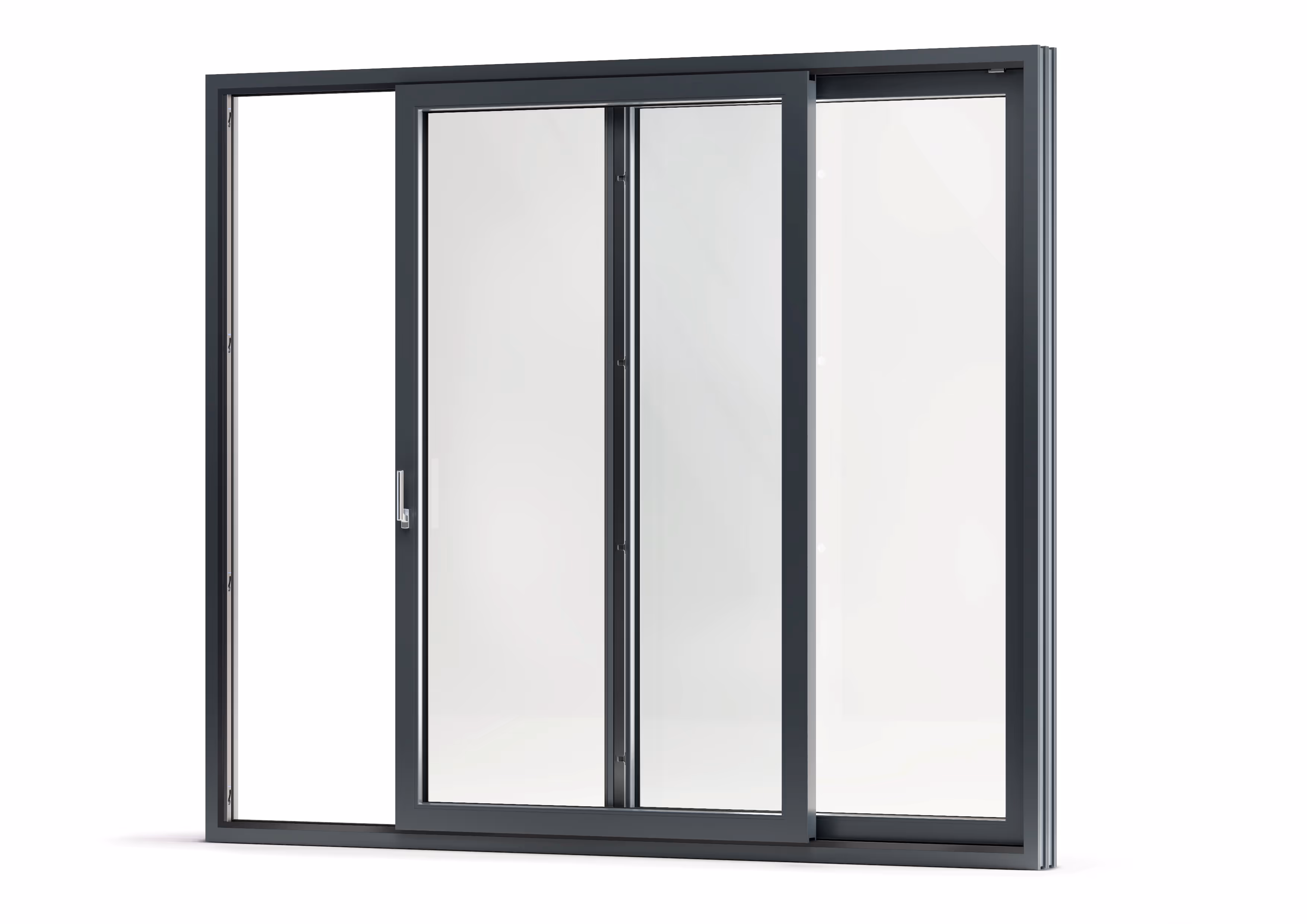

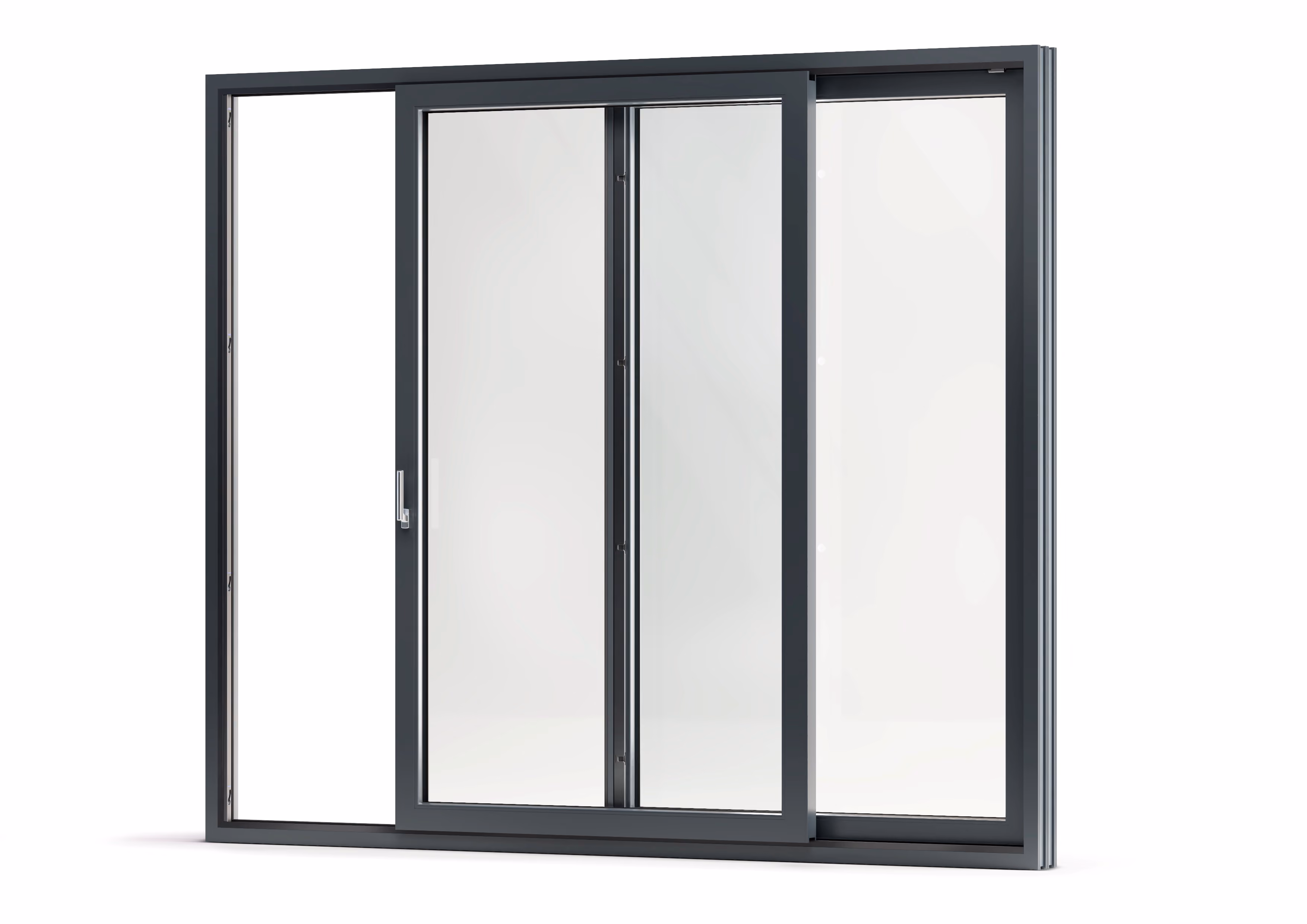

EasyGlide 76

The all-season patio door

Not a fan of sliding patio doors, especially for the harsh North American climates?


Understandable.

Patio doors get a bad reputation for a reason: most just use mohair gaskets that create friction but don’t provide a proper seal. Over time, these gaskets wear out and the door becomes even more drafty, causing the service calls and door replacements that nobody wants to deal with.

The EasyGlide 76 is engineered differently. European hardware pushes the sash away from the frame as the door opens, allowing for the use of rubber gaskets.

This is a parallel sliding door, not your standard friction slider. Its parallel sliding function makes both buttery-smooth operation and airtight compression sealing possible, a combination that sets the EasyGlide apart in the North American patio door market.

No more drafty seals, no more struggling to open the door. This door will have your customers satisfied all year round, for decades.

Effortless movement
‍

Maintenance-free bogie wheels and European sliding door hardware ensure the sash glides smoothly with a simple push.

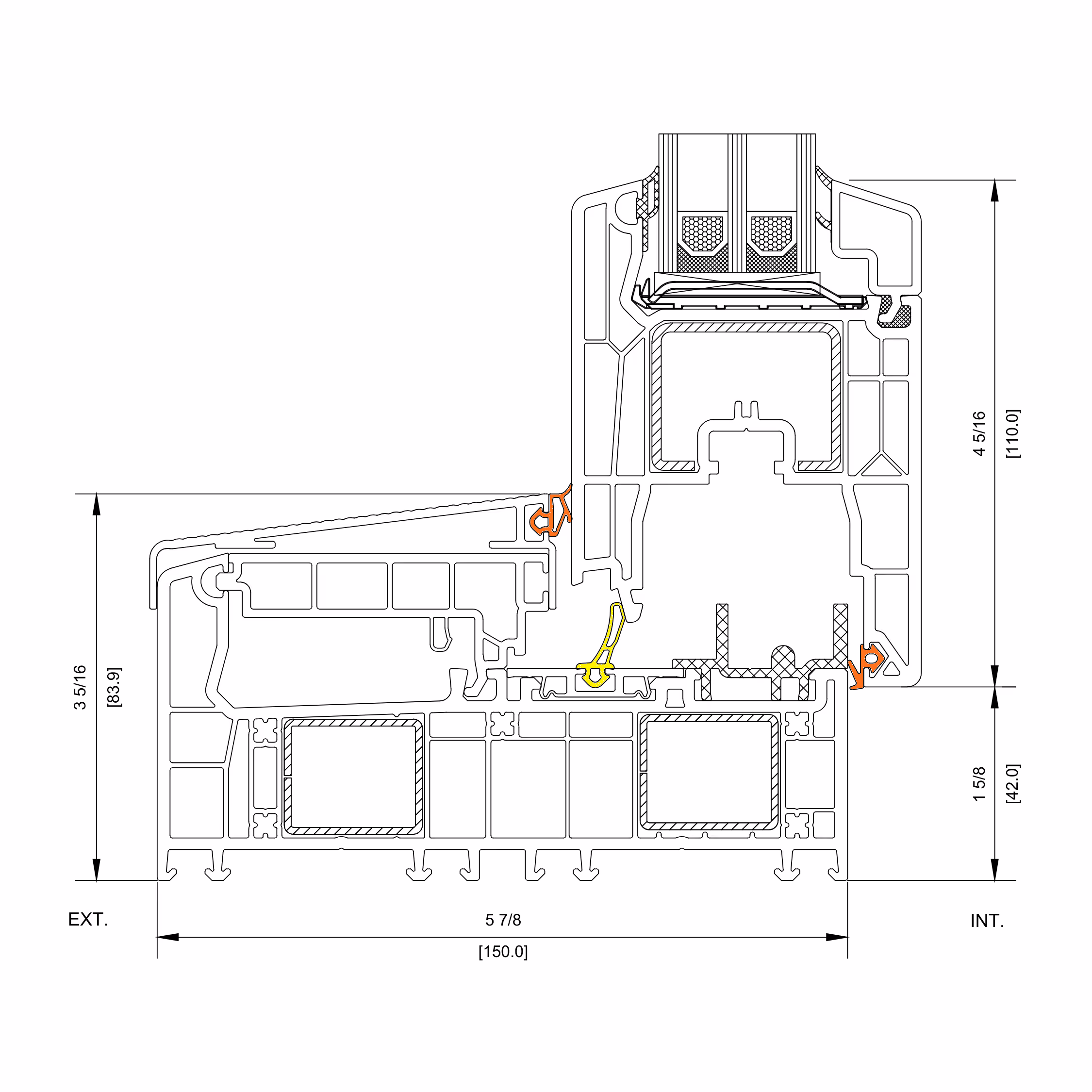

Keep out the drafts
‍

Compression sealing and an advanced gasket system deliver exceptional thermal performance and noticeably reduced outdoor noise.

Reliable security
‍

Multi-point locking (three points on the centre mullion and four on the frame side) provides exceptional protection and lasting peace of mind.

Premium feel and built to last

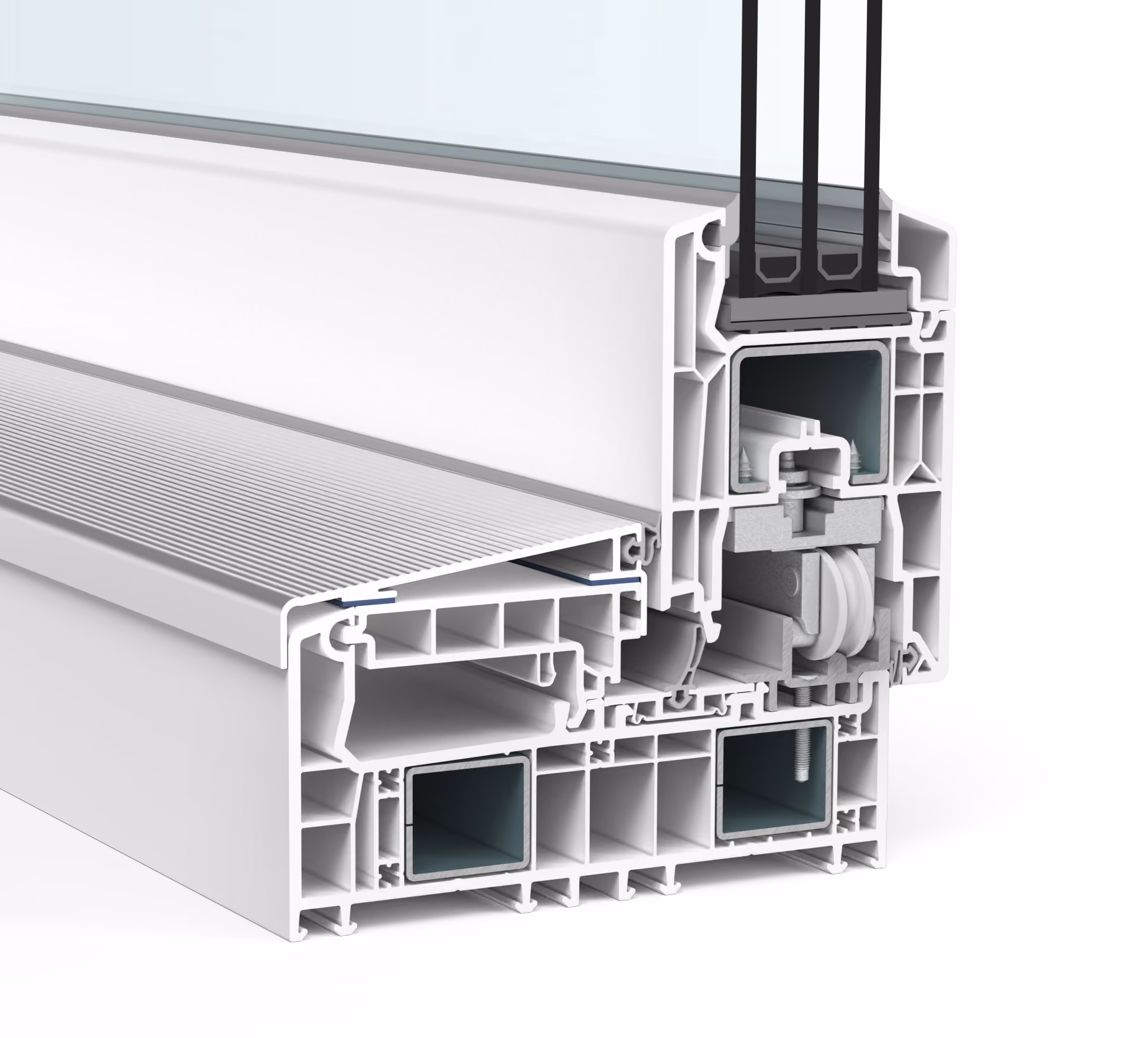

Steel reinforced uPVC profiles, welded sash and frame corners, Siegenia hardware, and a 10-year limited warranty all ensure long-lasting durability.

Engineered in Germany, Made in Canada

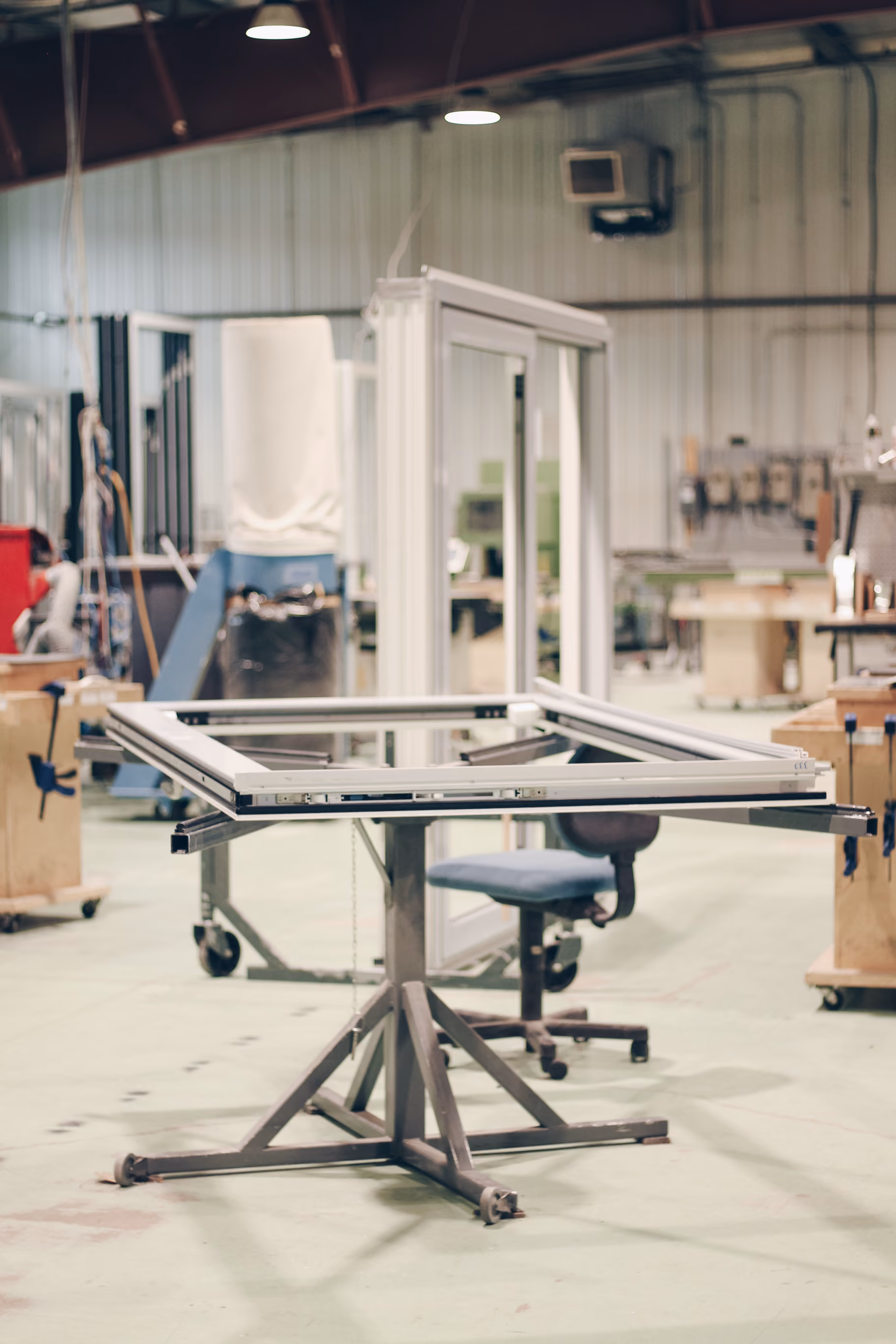

The EasyGlide 76 is a German patio door system that Fentro has NAFS and NFRC tested for North America. Fentro builds these doors in Canada and distributes them to window and door manufacturers across North America.

Custom Sizes as Standard

We don’t charge extra for custom. Submit an EasyGlide 76 order with your exact measurements and we will build the door you need - up to a max size of 165” x 96”.

‍

Delivered Unglazed to Manufacturers

We work B2B with window and door manufacturers, which is why the EasyGlide 76 is delivered unglazed - the manufacturer takes care of the glazing with their discounted glass rates.
‍

Sizes

Maximum door size (NAFS and NFRC tested)
‍
4200 x 2438 mm (165" x 96")

‍Maximum operable sash width
‍
1524 mm (60")

‍Minimum door size
‍
1215 x 922 mm (48" x 36")
‍smaller sizes ideal for kitchen windows‍‍

‍Glass thickness options
‍
up to 48 mm (1.9")

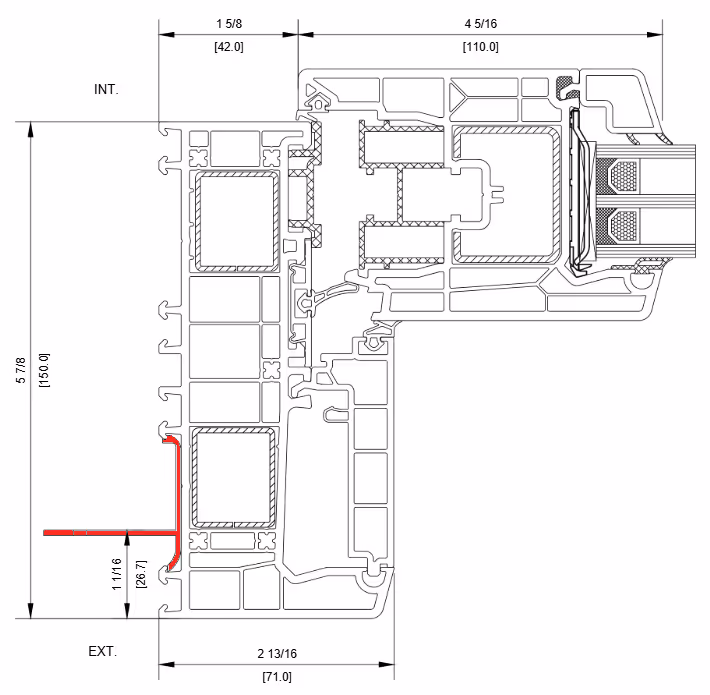

‍Sash profile thickness
‍
76 mm (3")

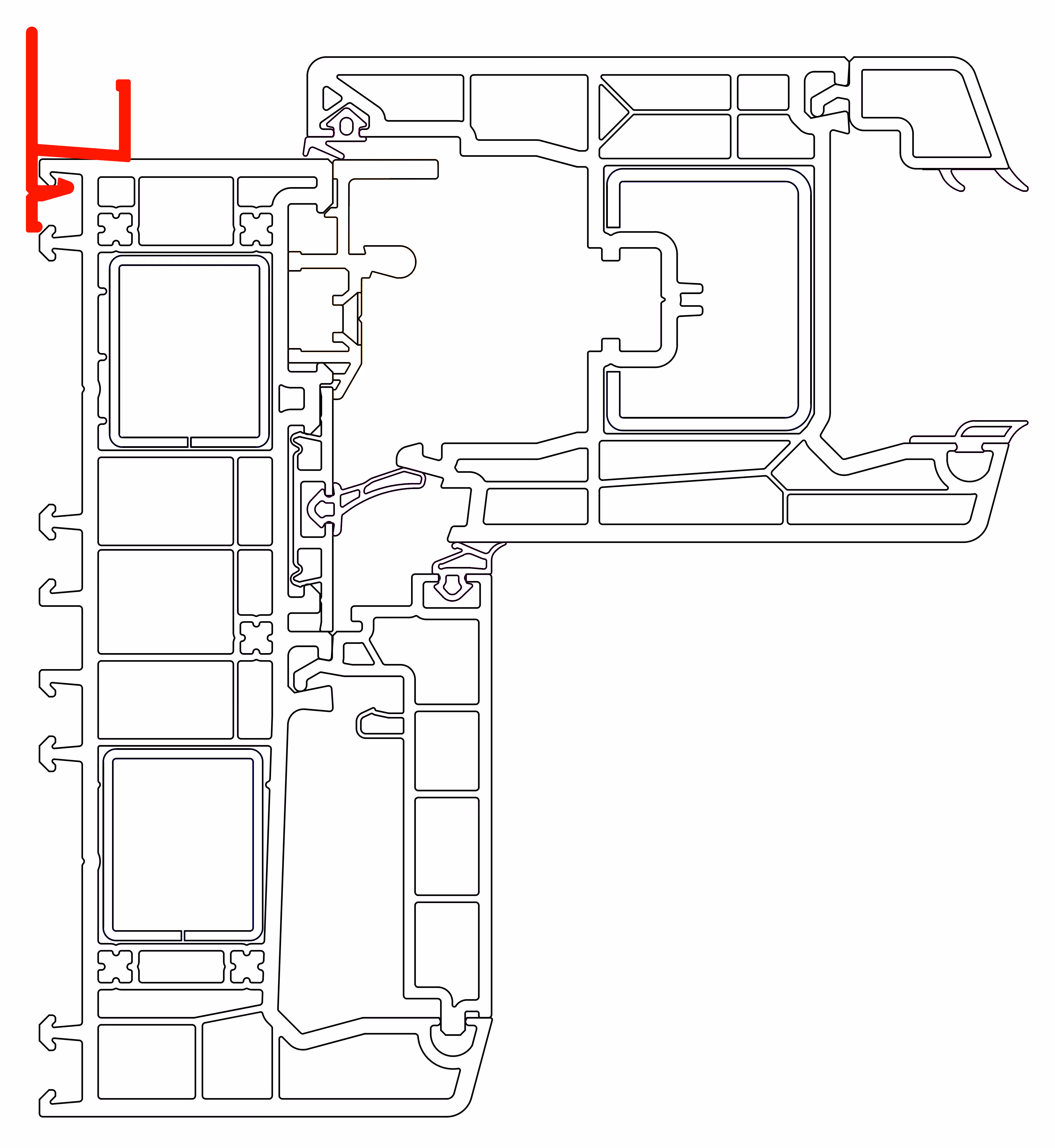

‍Frame profile depth
‍
150 mm (5.9")

Opening Types

O = Fixed portion
X = Slider portion
L = Left side slides first
R = Right side slides first

Viewed from the outside
Maximum sizes:
XO/OX: 3048 x 2438 mm / 120" x 96"
OXO: 4200 x 2438 mm / 165" x 96"

Minimum sizes:
XO/OX: 1215 x 922 mm / 48" x 36"
OXO: 1800 x 922 mm / 70" x 36"
Maximum sizes
2 panel:
3048 x 2438 mm / 120" x 96"

Minimum sizes
2 panel: 1215 x 922 mm / 48" x 36"
Maximum sizes
3 panel:
4200 x 2438 mm / 165" x 96"

Minimum sizes
3 panel:
1800 x 922 mm / 70" x 36"

Security & Sealing

Watch the video for a demo of how the EasyGlide’s European sliding door hardware works.

Hardware Options

Our handle sets can be configured in various ways:

(1) interior handle and exterior recessed pull,

(2) handles on both sides with a key cylinder, or

(3) handles on both sides with a thumbturn cylinder inside and no key outside.
Both handle options are available in titanium, black, and white.

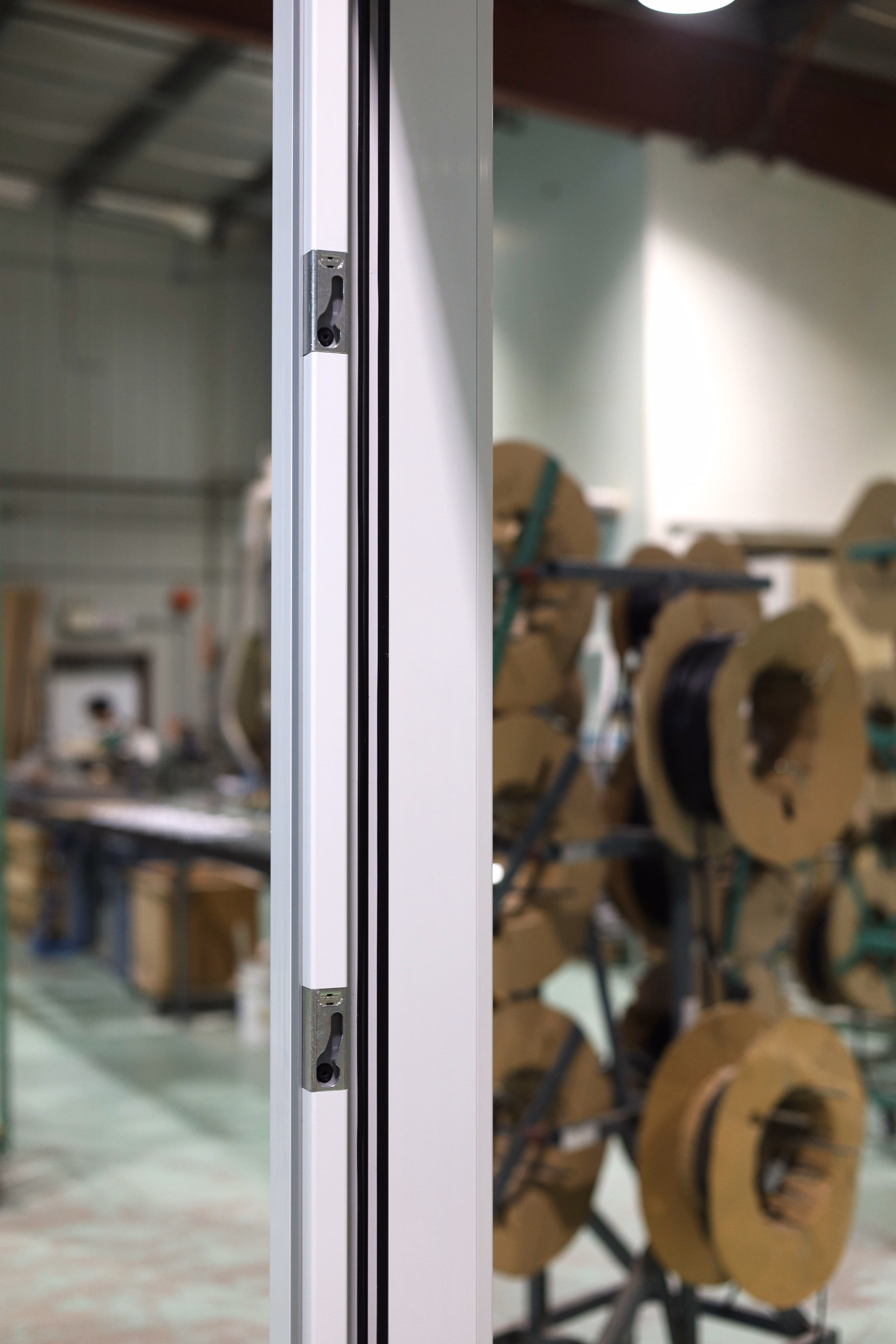

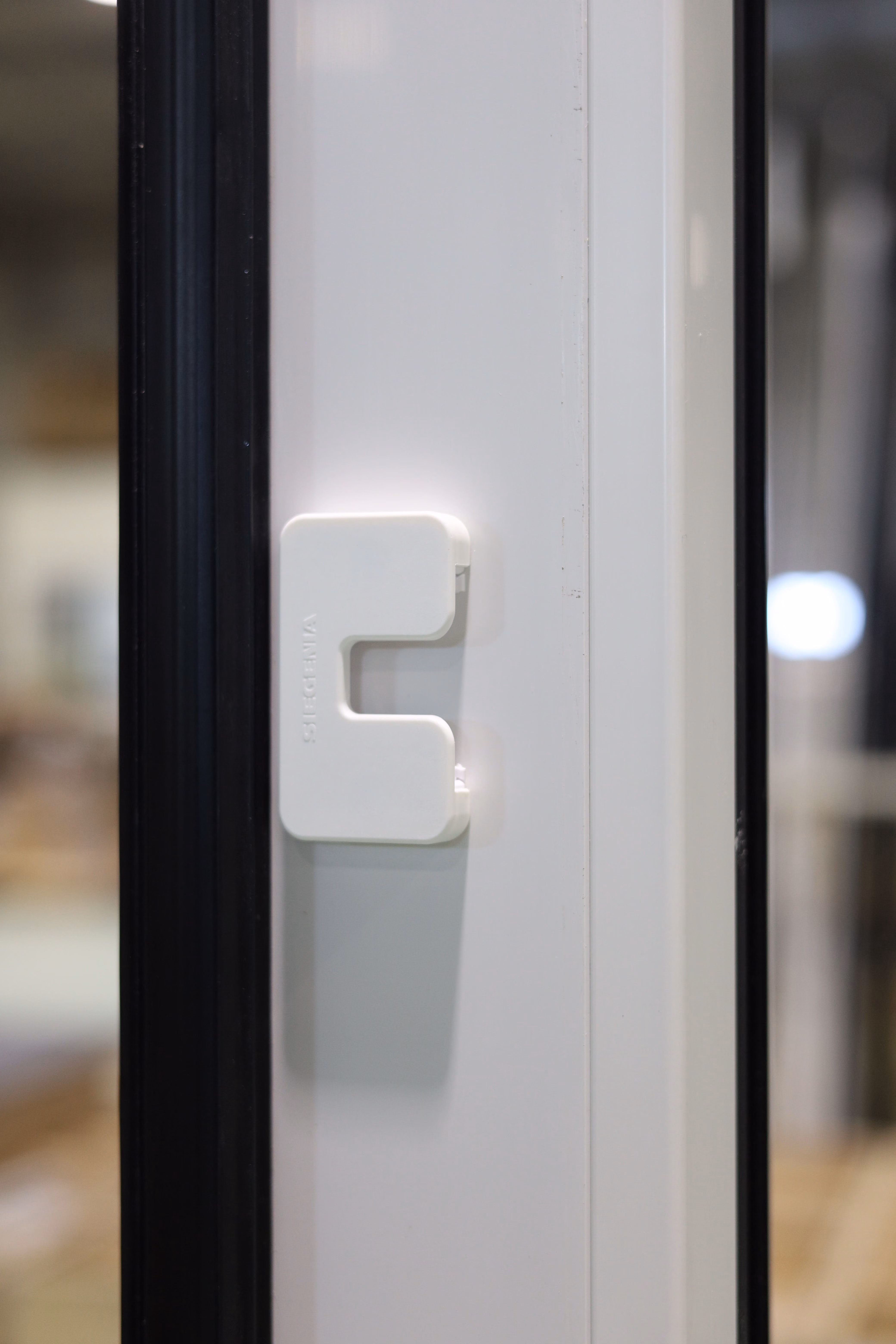

Mullion strikers and lockside covers (design covers) are available in black or white.

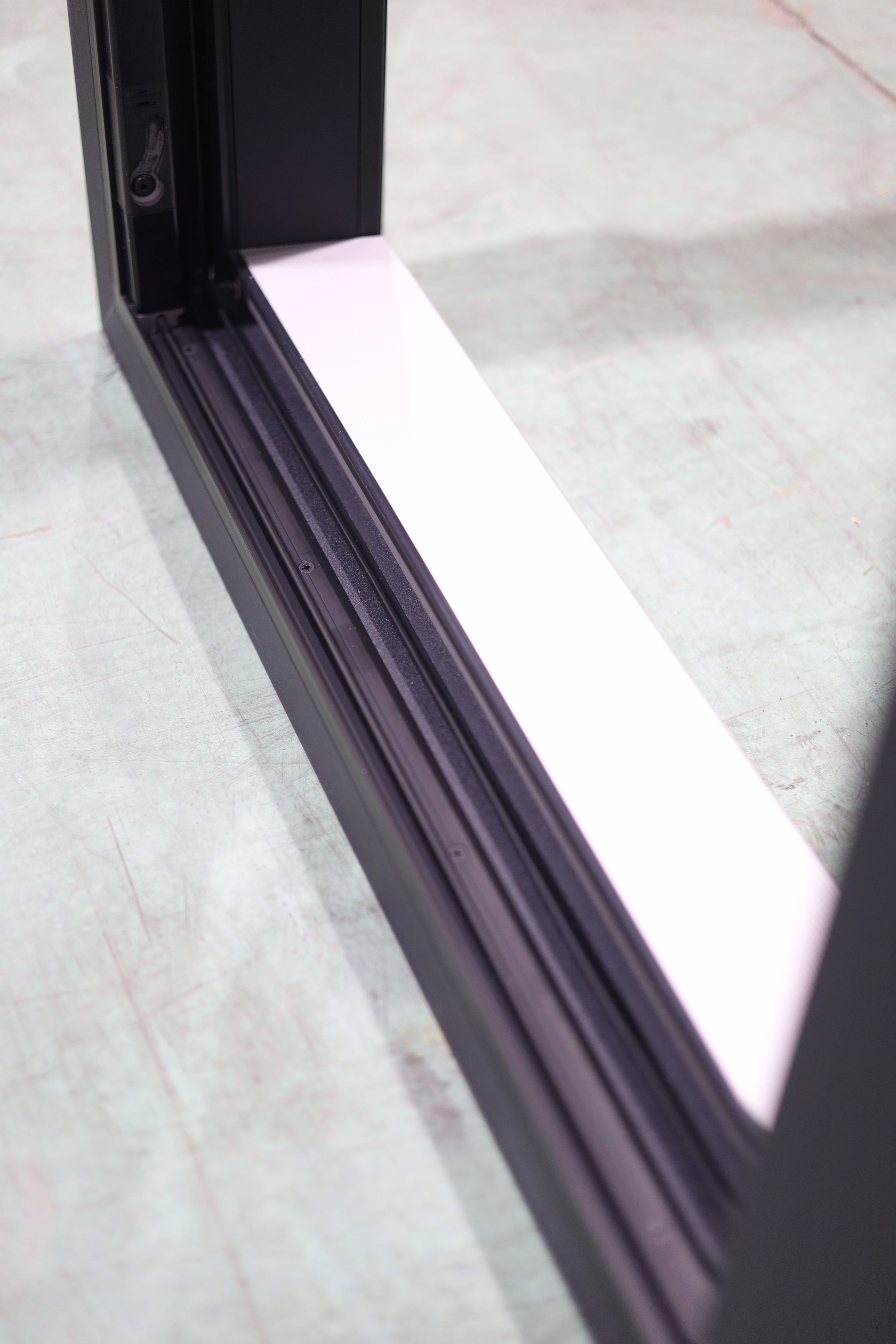

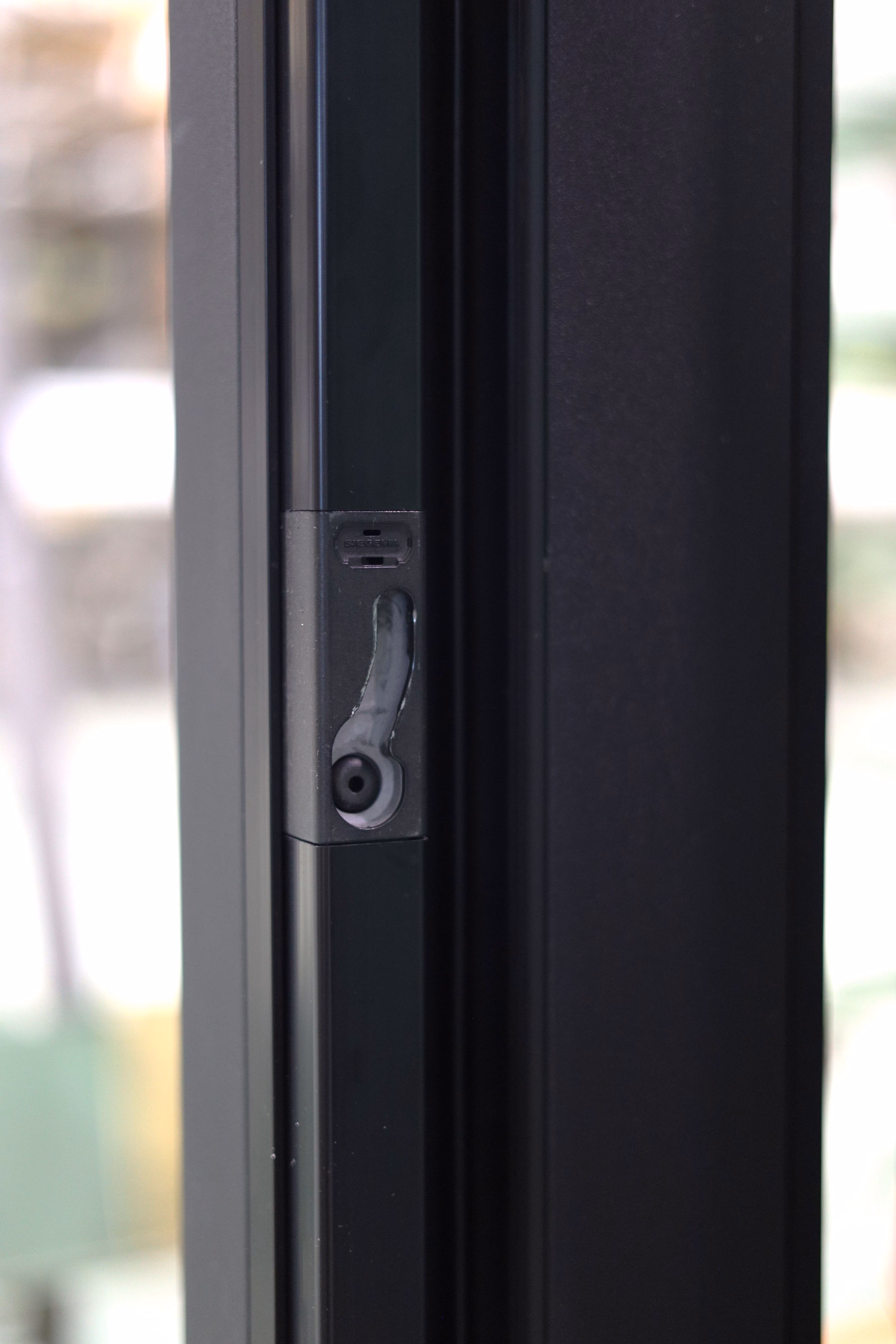

Lockside strikers and bottom track are available in black or silver.

Finish Options

The EasyGlide 76 is available laminated in any of our ten in-stock colours below. If desired, it can be laminated with a different colour on the exterior and interior of the door for full customization.

Lamination improves the durability and longevity of door profiles and even reduces warping. Plus, laminated doors are a homeowner favourite: durable, scratch resistant, easy to clean, and available in a range of colours and textures.

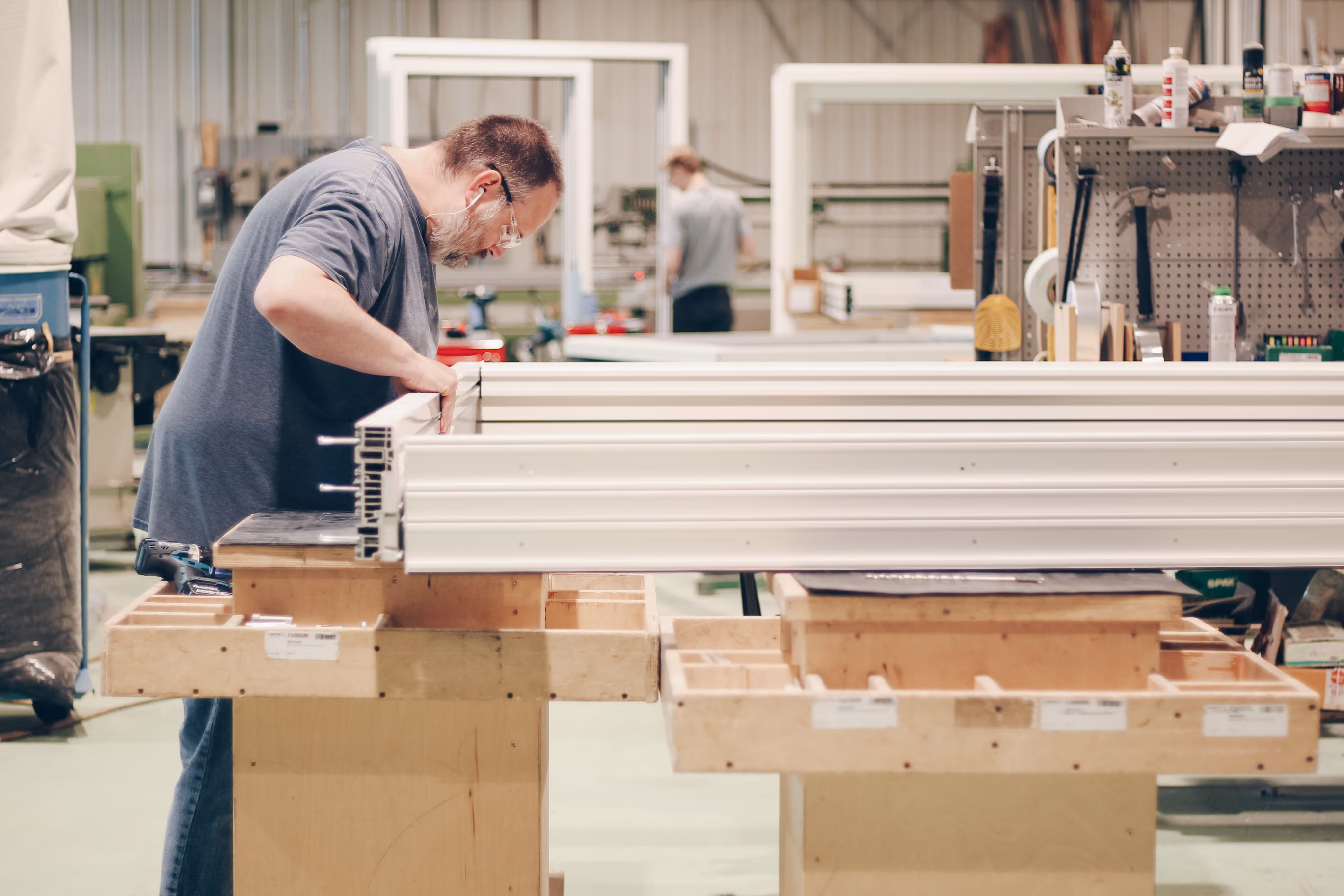

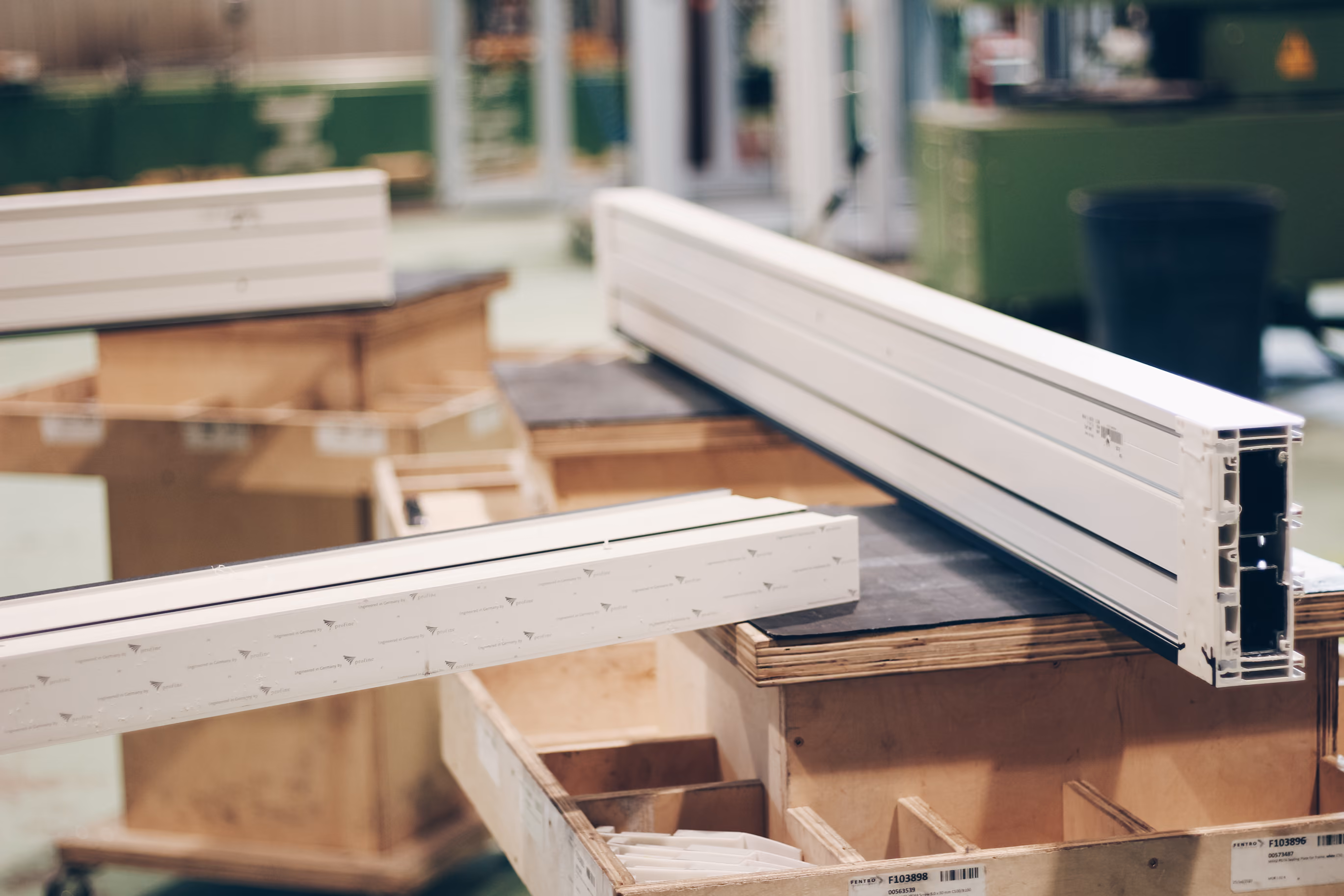

Profiles for all our doors are wrapped in-house at Fentro. We also offer this service to window and door manufacturers through our Fentro Profile Wrapping division.

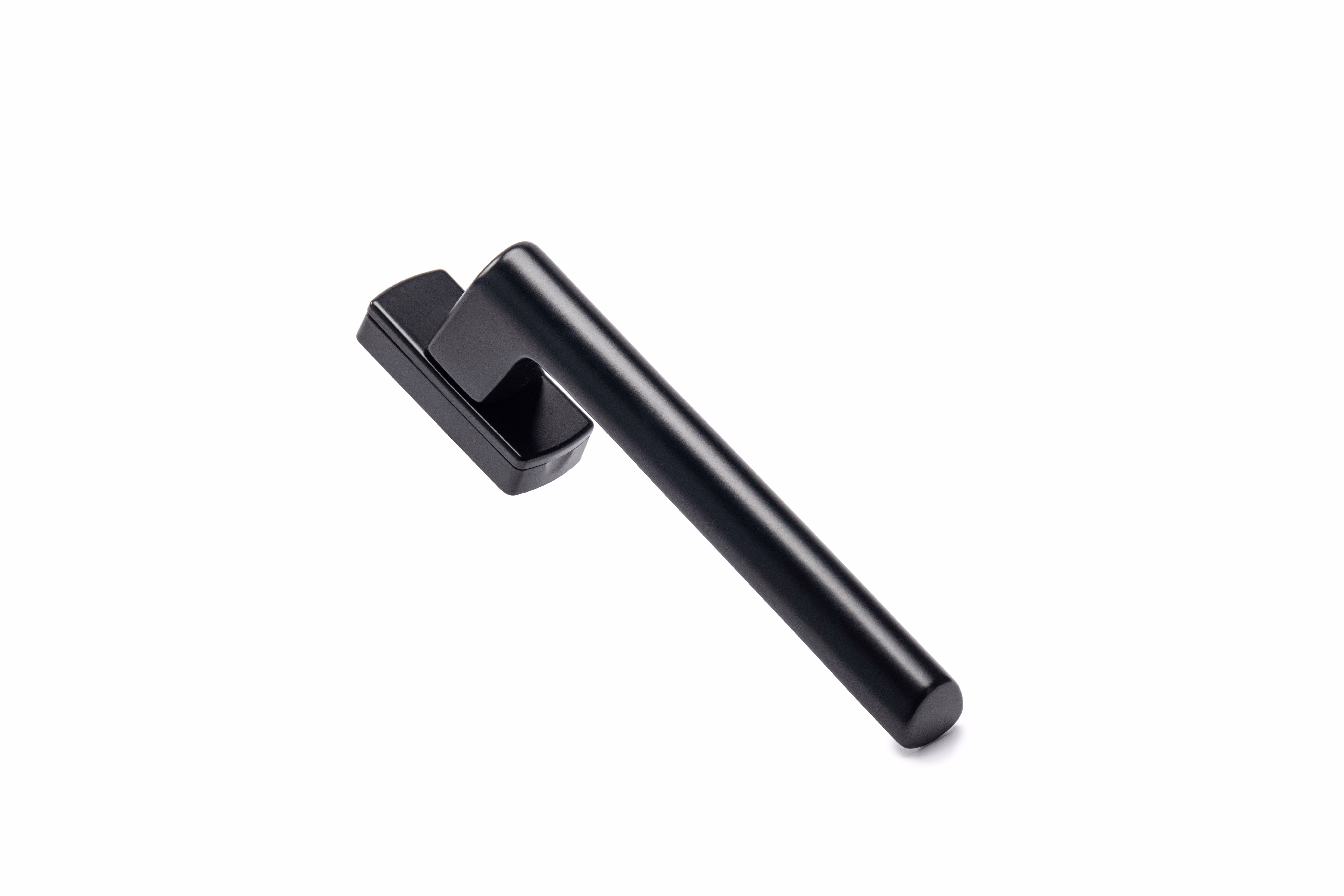

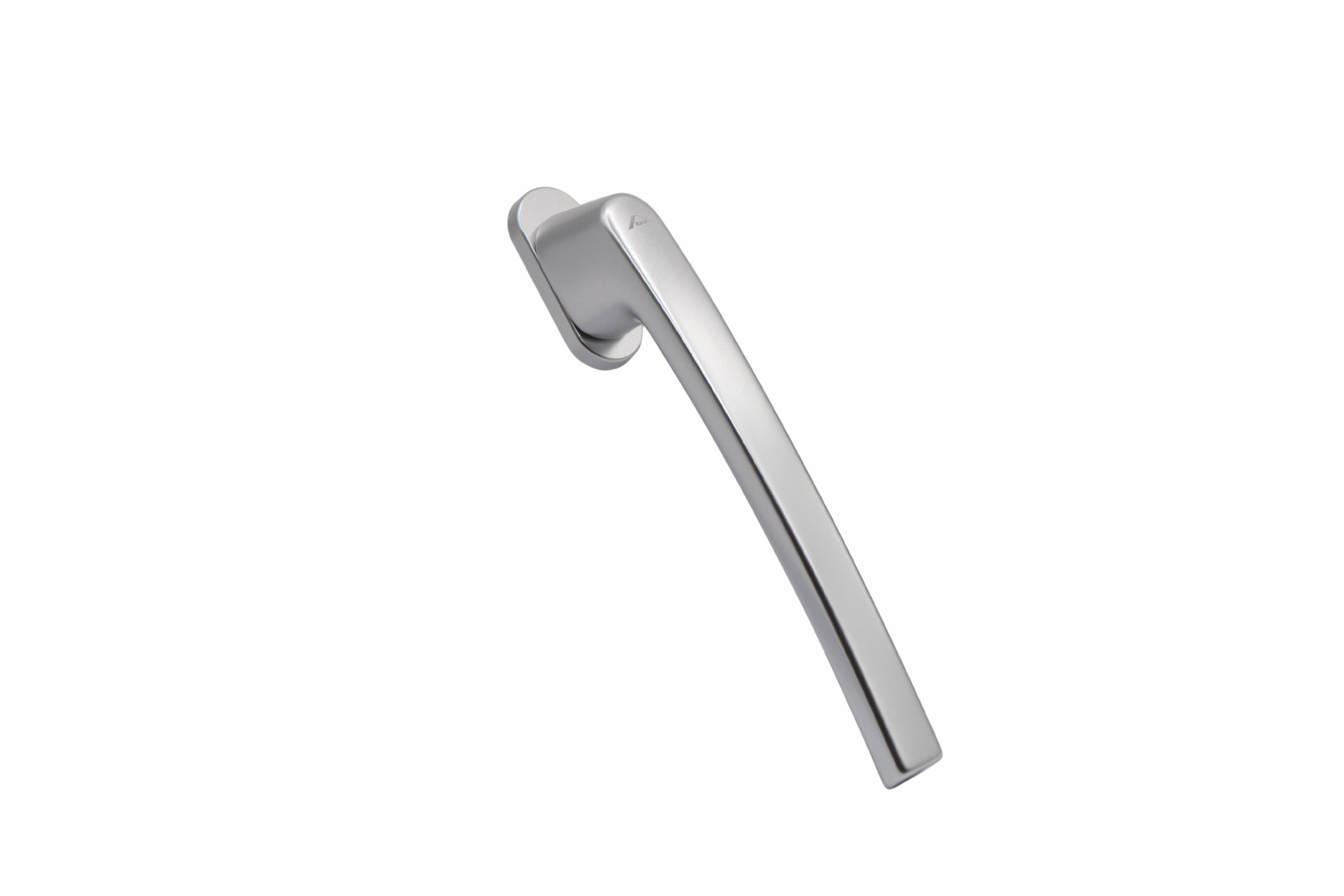

Handle Options

Our handle set can be configured in various ways:
(1) interior handle and exterior recessed pull,
(2) handles on both sides with a thumbturn lock inside and no keylock outside,
(3) handles on both sides with a thumbturn lock inside and a keylock outside, or
(4) an interior lockable handle and exterior recessed pull.

Screen Solutions

We offer multiple retractable screen options from Wizard Screen Solutions, as
well as our in-house sliding screen solution.

VistaView™

The VistaView™ from Wizard Screen Solutions is a high-end retractable screen that is captured in both the top and bottom tracks, keeping the mesh retained and tight at all times. Easy to operate, its auto stop technology makes it possible to stop the screen at any desired position to conveniently access doors. It can cover openings up to 8534 mm (336") wide and 3353 mm (132") high and is available in five standard colours, with custom RAL colours available upon request.

More Info
RetractaView™

The RetractaView™ is another screen from Wizard Screen Solutions, built to last with quality materials. It retracts smoothly and completely when opened. It can cover openings up to 1371 mm (54”) wide and 2743 mm (108”) high and is available in eight standard colours, with custom RAL colours available upon request.

More Info
Fentro Sliding Screen

Our in-house manufactured solution, the Fentro sliding screen is a high quality screen made with European screenbar, offering economical and effective bug protection that is perfectly integrated and aesthetically pleasing. It can cover openings up to 2000 mm (78”) wide and 2200 mm (86”) high. Standard colours are white and black, with custom RAL colours available upon request.

Watch Video

Performance Summary

Tested door configuration: OXO
Tested door size: 4200 x 2438 mm (165" x 96")
Largest tested door size. Contact us for test results on additional sizes.

NAFS Performance Class & Grade
CW-PG35
LC-PG60
Air Tightness
CW: A3 | 0.01 L/s/m² (0.01 cfm/ft²)
LC: A3 | 0.01 L/s/m² (0.01 cfm/ft²)
Water Tightness
CW: 720 Pa (15.04 psf)
LC: 720 Pa (15.04 psf)
Design Pressure
CW: ±1680 Pa (±35.09 psf)
LC: ±2880 Pa (±60.15 psf)
